TSW09R100A31.0-05W16.0C
Slot mill head with boss

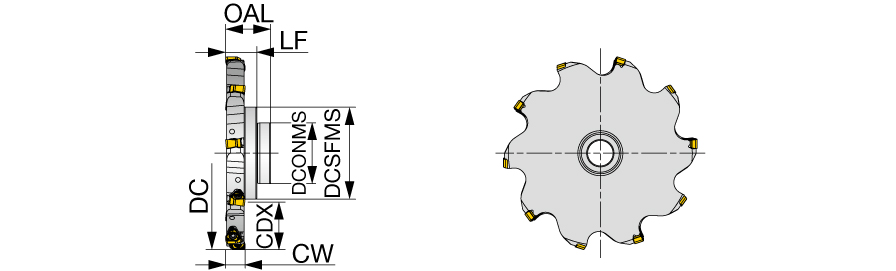

| Cutting Diameter (DC) | 100 mm | Application | | Slot Milling | |
| Cutting Width (CW) | 16 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 25.5 mm | Tool Type | Double-sided slotting cutters |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 31 mm | Cutting Item Count (CICT) | 10 |
| Overall Length (OAL) | 23 mm | Functional Length (LF) | 16 mm |
| Usable Length (LU) | 0.73 kg | Master Insert Identification (MIID) | WNGU090408TN-MJ |
Product Features
| Family Description | Slot mill head with boss | Country of Origin | JAPAN |
| Remarks | For how to assemble the cutter body to the adapter, click on "More Info". *Note : Dedicated wrench is sold separately. If coolant isn't supplied from the end of the arbor inlay,the center bolt corresponding to the adaptor is essential for coolant supplying. |
Shipping Info
Package Weight
0.000
Related Documentation

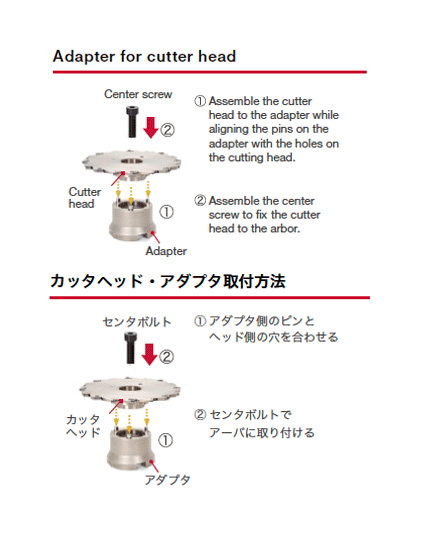

[Adapter for cutter head] @(1) Assemble the cutter head to the adapter while aligning the pins on the adapter with the holes on the cutting head. @(2) Assemble the center screw to fix the cutter head to the arbor.
