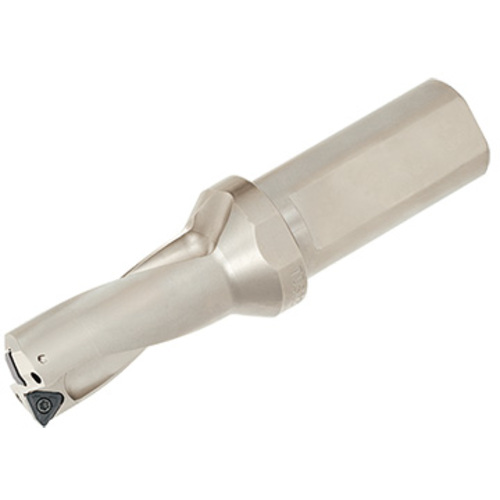

TDSU1000F-2 TUNGSIXDRILL
Indexable Insert Drill; 1″ Dia. × 2.035″ LU × 1″ Shank Dia. × 5.197″ OAL ; Steel

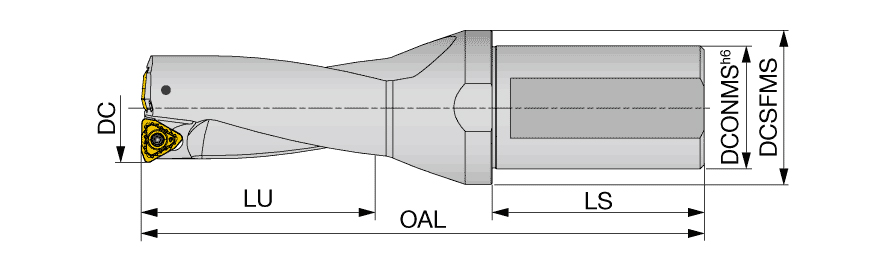

| Cutting Diameter (DC) | 1″ | Cutting Diameter Minimum (DCN) | 1″ |
| Usable Length (LU) | 2.035″ | Cutting Diameter Maximum (DCX) | 1″ |
| Application | | General Drilling | | Flange Diameter (DF) | 1.457″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Point Length (PL) | 0.035″ |
| Tool Type | Indexable Insert Drills | Measurement Type | Inch |
| Shank Length (LS) | 2.205″ | Master Insert Identification (MIID) | WWMU060306R-DJ |
| Functional Length (LF) | 2.957″ | Body Material | Steel |
| Overall Length (OAL) | 5.197″ | Decimal Equivalent | 1″ |
Product Features
| Family Description | TungSix-Drill Indexable insert drills, L/D=2, Flat cotter | Country of Origin | Japan |
Shipping Info
Additional Fees and Notes
0
Package Weight
1.047
