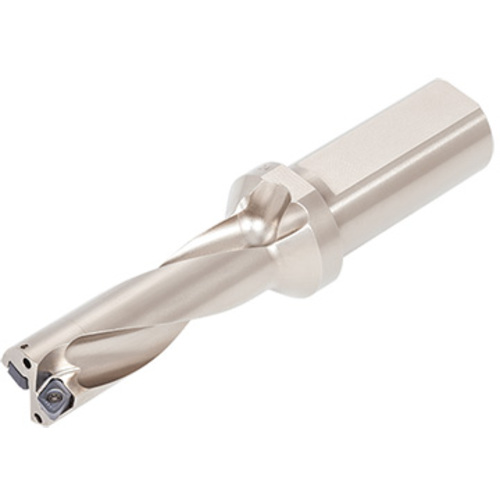

TDX290F32-3
TungDrillTwisted Indexable insert drills, L/D=3, Flat cotter

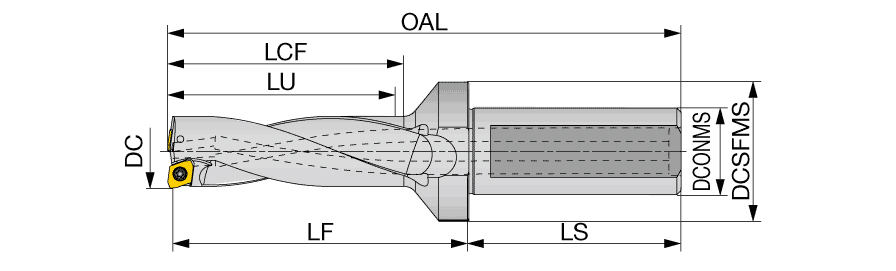

| Cutting Diameter (DC) | 29 mm | Overall Length (OAL) | 172 mm |
| Usable Length (LU) | 87.7 mm | Cutting Diameter Minimum (DCN) | 29 mm |
| Application | | General Drilling | | Cutting Diameter Maximum (DCX) | 29 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Flange Diameter (DF) | 40 mm |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.73 mm |
| Shank Length (LS) | 59 mm | Measurement Type | Metric |
| Length Chip Flute (LCF) | 92 mm | Master Insert Identification (MIID) | XPMT08T308R-DJ |
| Functional Length (LF) | 112.3 mm | Body Material | Steel |
Product Features
| Family Description | TungDrillTwisted Indexable insert drills, L/D=3, Flat cotter | Country of Origin | JAPAN |
Shipping Info
Package Weight
1.761
