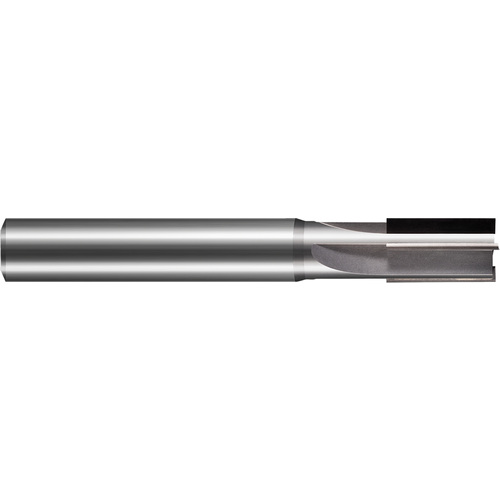

Diamond End Mills for Non-Ferrous Materials - PCD Diamond - 0.2500″ (1/4″) Cutter Diameter × 0.5000″ (1/2″) Length of Cut PCD Square End Mill, 4 Flutes
| Cutting Diameter (DC) | 1/4″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1/2″ | Usable Length (LU) | 1″ |
| Overall Length (OAL) | 2-1/2″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | PCD | Tool Type | Single-End|Non-Center Cutting |
| Coating | CVDDIA | Decimal Equivalent | 0.25″ |
Product Features
| Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.072
