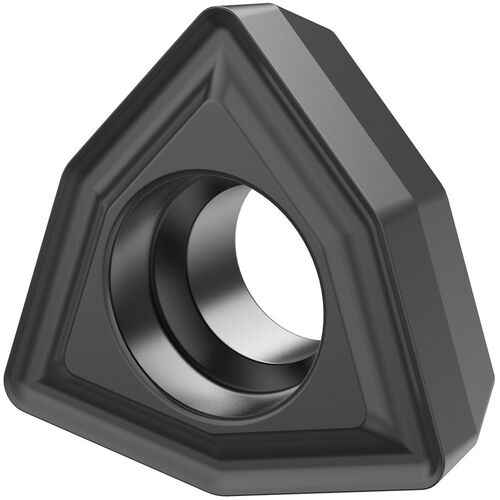

DFT070408HP KC7140
Drill Insert; 0.313″ Length × 3/16″ Thickness × 0.472″ IC × 1/32″ Corner Radius ; 84 Degrees Included Angle ; Trigon ; Carbide ; TiN ; KC7140
Additional Tariff Surcharge of 8.5 %
| Cutting Edge Length (L) | 0.313″ | Shape | Trigon |
| Insert Thickness (S) | 3/16″ | Coating | TiN |
| Insert Included Angle (EPSR) | 84 Degrees | Grade | KC7140 |
| Inscribed Circle Diameter (IC) | 0.472″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 3 |
| Fixing Hole Diameter (D1) | 4.4 mm | Cutting Direction (HAND) | Neutral |
Product Features
| Remarks | •High positive chip breaker geometry preferred on ductile and normal chipping materials. | Country of Origin | Germany |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.014
